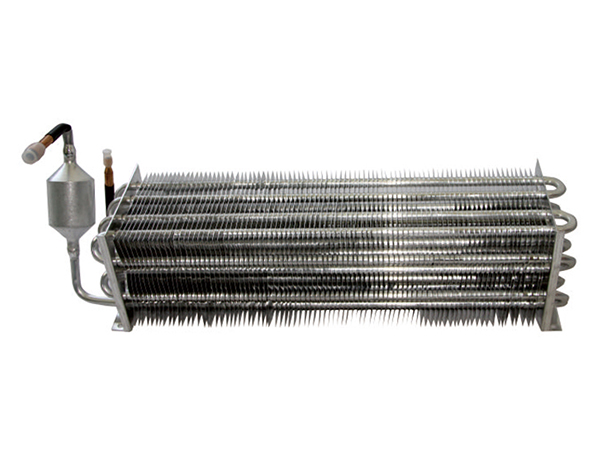

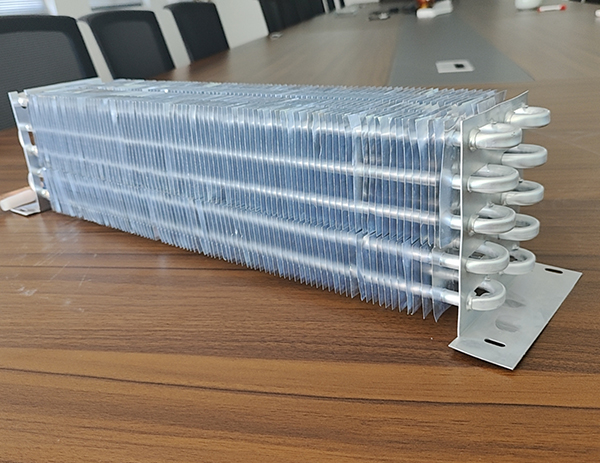

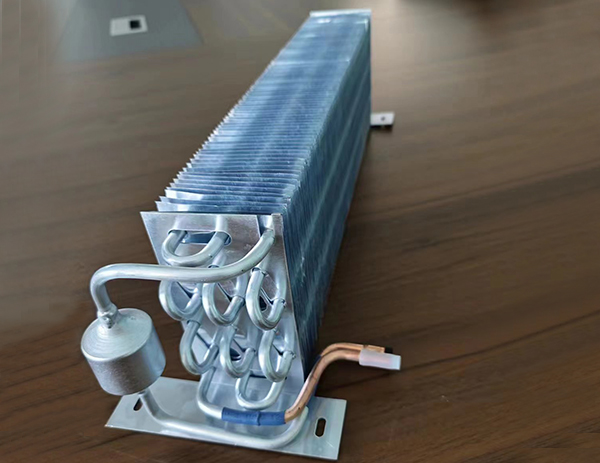

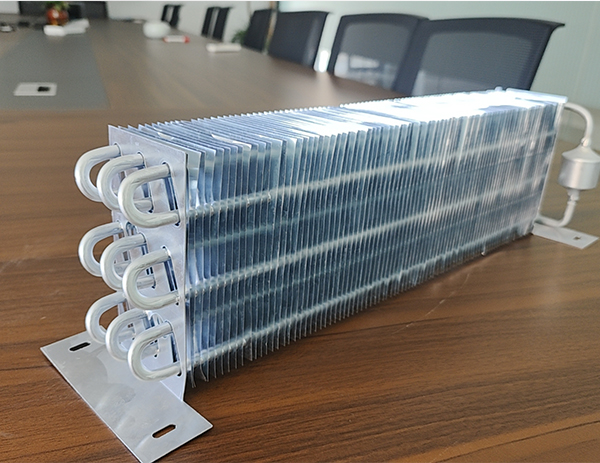

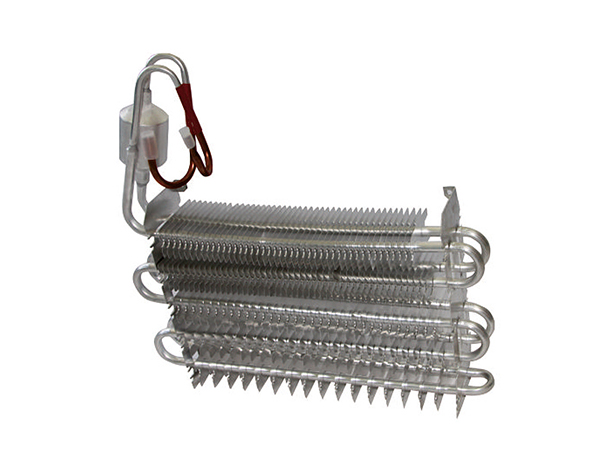

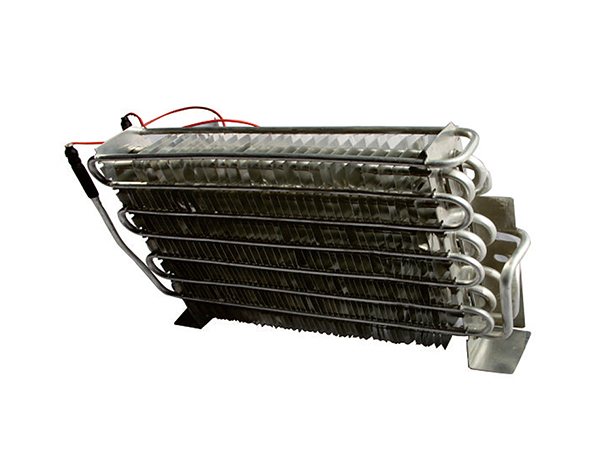

Finned evaporator (aluminium tube)
Rawmaterials:1)Aluminumtube:￠6.35x0.7～1mm2)Aluminumfoil:sheetthicknessT=0.15~0.25mm3)Sidepanel:aluminumplateT=0.8~1.5mm Application:Refrigerator,freezerandotherrefrigerationequipmentevaporator
Product specifications
Raw materials:
1) Aluminum tube: ￠6.35×0.7～1mm
2) Aluminum foil: sheet thickness T = 0.15 ~ 0.25mm
3) Side panel: aluminum plate T=0.8~1.5mm
Application:
Refrigerator, freezer and other refrigeration equipment evaporator
Main process:
Bending, stamping, expansion, degreasing, welding assembly, leak detection, drying, inspection, packaging
Technical specifications:
1) oblique insertion type: fin specification 50×19.05×N; 60×19.05×N (N≥4)
2) Expansion type: fin size 60×28; 52×28
3) Compression type: fin size 50.8×203.2
Can be customized according to customer drawings or sample requirements
Product performance:
Meet the designed refrigerator and freezer refrigeration requirements
| Standards in refrigeration system piping: |
|
Content product (cm3) ≤100cm3 101～200 101～400 401～800
Residual moisture (mg) ≤10 ≤20 ≤25 ≤30
Residual impurities (mg) ≤100mg/100cm3
Maximum single impurity ≤ 2mg
|
